PE3-26 移动导出表-重定位表

为什么需要移动各种表？

1. 表的重要性：
   这些表由编译器生成，存储了程序运行过程中不可或缺的信息。
2. 初始化的作用：
   系统在程序启动时，会依据这些表完成初始化，例如将使用的 DLL 中函数的地址加载到 IAT 表中。
3. 保护程序的需求：
   为了保护程序，可以对 .exe 的二进制代码进行加密。但问题在于，各种表和用户代码及数据混合在一起。加密后，系统在初始化时会因无法正确解析表信息而出错。

总结：

掌握表的移动技巧，是程序加密与反破解的基础。

移动导出表

通常步骤：新增一个节（Section），并将表移动到新节。移动后需要重新计算 ROV。

具体操作步骤：

1. 新增节：
   在 DLL 中创建一个新的节，记录新增后的 FOA。
2. **复制 AddressOfFunctions**：
   长度：4 × NumberOfFunctions。
3. **复制 AddressOfNameOrdinals**：
   长度：2 × NumberOfNames。
4. **复制 AddressOfNames**：
   长度：4 × NumberOfNames。
5. 复制函数名字符串：
   长度不固定，在复制时直接修复 AddressOfNames。
6. 复制 IMAGE_EXPORT_DIRECTORY 结构。
7. 修复 IMAGE_EXPORT_DIRECTORY 中的字段：
   • AddressOfFunctions
   • AddressOfNameOrdinals
   • AddressOfNames
8. 更新目录项中的值：
   指向新的 IMAGE_EXPORT_DIRECTORY。

为什么函数名字符串也要移动？

很多人会有疑问，为什么要移动函数名字符串？不解密 DLL 后直接使用不行吗？以下是原因：

1. 调用依赖函数名：
   外部调用 DLL 时，需要提前知道函数名，而加密后的 DLL 在解密前无法直接访问其内部内容。

2. 调用示例：

   使用导出函数的代码可能如下：

   #include <iostream>
   #include <windows.h>
   using namespace std;
   int main()
   {
       HMODULE h = LoadLibrary(L"reloca.dll");
       typedef void(*PFUNC)();
       PFUNC my_func = (PFUNC)GetProcAddress(h, "Print");
       my_func();
       return 0;
   }

   以上代码在调用 GetProcAddress 时，依赖于函数名字符串。因此，即使 DLL 解密成功，解密前调用者仍需要通过函数名找到目标函数。

结论：

函数名字符串必须提前妥善移动，以确保解密前调用过程不出问题。

移动重定位表

1. 移动方法：
   将重定位表原样复制到新的节中，并修改数据目录的偏移。
2. 修改节属性：
   与移动导出表类似，调整新增节的属性，使之符合预期。
3. 保持原内容：
   保持重定位表原始内容不变，只需更新相关指针和偏移即可。

Work：移动导出表-重定位表

示例代码

PE.h

#pragma once
#include <iostream>
#include <windows.h>


//* 作用：读取PE数据
//	lpszName: 文件路径
//* 返回：PE数据指针
extern "C" LPVOID ReadPE(
	IN LPCSTR lpszName
);


//* 作用：数据对其
//	n: 数据大小
//	alignment: 对其大小
//* 返回：PE数据指针
size_t Align(
	int n,
	int alignment
);

//* 作用：拉伸PE
//	pe: 文件PE指针
//* 返回：拉伸后的PE指针（内存中的PE）
LPVOID StretchPE(
	IN LPVOID pe
);

//* 作用：收缩PE
//	pe: 内存PE指针
//* 返回：收缩后的PE指针（硬盘中的PE）
LPVOID ShrinkPE(
	IN LPVOID pe
);

//* 作用：解析PE
//	pe: PE指针
//	pDosHeader: DOS结构体指针
//	pFileHeader: FILE结构体指针
//	pOptionalHeader: OPTIONAL结构体指针
//	pSectionArr: SECTION结构体数组指针
//* 返回：无
void AnlyzePE(
	IN  LPVOID pe,
	OUT PIMAGE_DOS_HEADER& pDosHeader,
	OUT PIMAGE_FILE_HEADER& pFileHeader,
	OUT PIMAGE_OPTIONAL_HEADER32& pOptionalHeader,
	OUT PIMAGE_SECTION_HEADER*& pSectionArr
);

//* 作用：内存偏移转文件偏移
//	pe: PE指针
//	rva: 地址在内存中的偏移
//* 返回：文件偏移（失败返回-1）
int RvaToFoa(
	IN LPVOID pe,
	IN UINT_PTR rva
);


//* 作用：文件偏移转内存偏移
//	pe: PE指针
//	foa: 地址在文件中的偏移
//* 返回：内存偏移（失败返回-1）
int FoaToRva(
	IN LPVOID pe,
	IN DWORD foa
);

//* 作用：打印导出表
//	pe: PE指针
//* 返回：无
void PrintExport(
	IN LPVOID pe
);

//* 作用：字符串比较
//	s1: 字符串1
//	s2: 字符串2
//* 返回：比较结果(成功返回true，失败返回false)
bool M_strcmp(
	IN char* s1,
	IN char* s2
);

//* 作用：根据名称获取函数地址
//	pe: PE指针
//	funcName: 函数名称
//* 返回：函数地址
LPVOID GetFunctionAddrByName(
	IN LPVOID pe,
	IN LPCSTR funcName
);

//* 作用：根据序号获取函数地址
//	pe: PE指针
//	exportNumber: 导出序号
//* 返回：函数地址
LPVOID GetFunctionAddrByOrdinal(
	IN LPVOID pe,
	IN DWORD exportNumber
);

//* 作用：添加节区
//	pe: PE指针
//	size: 节区大小
//* 返回：添加结果(成功返回true, 失败返回false)
bool CreateSection(
	IN LPVOID& pe,
	IN size_t size
);

//* 作用：将PE数据写入到文件中
//	pe: PE指针
//	size: 节区大小
//* 返回：写入结果(成功返回true, 失败返回false)
bool WriteMyFilePeData(
	IN LPVOID pe,
	IN LPCSTR filePath
);

//* 作用：扩容最后一个节区
//	pe: PE指针
//	size: 扩容大小
//* 返回：扩容后的PE指针
LPVOID SectionExpand(
	IN LPVOID pe,
	IN size_t size
);

//* 作用：移动重定位表
//	pe: PE指针
//	index: 移动节区的下标（1开始）
//* 返回：移动结果(成功返回true, 失败返回false)
bool RelocMove(
	IN LPVOID pe,
	IN int index = -1
);

//* 作用：设置内存镜像基址
//	pe: PE指针
//	imageBase: 新的内存镜像基址
//* 返回：修改结果(成功返回true, 失败返回false)
bool SetImageBase(
	IN LPVOID pe,
	IN DWORD imageBase
);

//* 作用：移动导出表
//	pe: PE指针
//	index: 移动节区的下标（1开始）
//* 返回：移动结果(成功返回true, 失败返回false)
bool ExportTableMove(
	IN LPVOID pe,
	IN int index = -1
);

PE.cpp

#include "PE.h"


LPVOID ReadPE(
	IN LPCSTR lpszName
) {
	//打开文件
	FILE* file = nullptr;
	fopen_s(&file, lpszName, "rb");
	if (!file)
	{
		printf("打开文件失败!\n");
		return nullptr;
	}

	//获取文件大小
	fseek(file, 0, SEEK_END);
	size_t size = ftell(file);
	fseek(file, 0, SEEK_SET);

	//申请内存
	LPVOID fileBuff = malloc(size);
	if (!fileBuff)
	{
		printf("申请内存空间失败!\n");
		fclose(file);
		return nullptr;
	}
	//将数据写入申请的内存中
	fread_s(fileBuff, size, 1, size, file);

	//判断头两个字节是不是MZ
	WORD mz = *((PWORD)fileBuff);
	if (mz != 0x5a4d)
	{
		printf("该文件不是pe可执行程序！\n");
		fclose(file);
		free(fileBuff);
		return nullptr;
	}

	return fileBuff;
}

size_t Align(
	int n,
	int alignment
) {
	int result = alignment;
	while (result < n)
	{
		result += alignment;
	}
	return result;
}

//* 拉伸PE
LPVOID StretchPE(
	IN LPVOID pe
) {
	PIMAGE_DOS_HEADER	dosHeader = nullptr;
	PIMAGE_FILE_HEADER	fileHeader = nullptr;
	PIMAGE_OPTIONAL_HEADER32 opHeader = nullptr;
	PIMAGE_SECTION_HEADER* sectTab = nullptr;
	AnlyzePE(pe, dosHeader, fileHeader, opHeader, sectTab);

	/*>>>> 核心代码 <<<<*/
	LPVOID imageBuff = malloc(opHeader->SizeOfImage); //申请内存空间
	if (imageBuff) //如果申请成功
	{
		//将申请的内存空间清零
		memset(imageBuff, 0, opHeader->SizeOfImage);
		//获取所有头内存对其后的大小
		size_t headerAlign = Align(opHeader->SizeOfHeaders, opHeader->SectionAlignment);
		//将文件对其的所有头/表复制到内存中
		memcpy_s(imageBuff, headerAlign, pe, opHeader->SizeOfHeaders);
		//将每个节区依次复制到内存中
		for (DWORD i = 0; i < fileHeader->NumberOfSections; i++)
		{
			PIMAGE_SECTION_HEADER section = (*sectTab + i);
			memcpy_s(
				(PCHAR)imageBuff + section->VirtualAddress,
				(size_t)((PCHAR)pe + section->SizeOfRawData),
				(PCHAR)pe + section->PointerToRawData,
				(size_t)((PCHAR)pe + section->SizeOfRawData)
			);
		}
	}
	/*>>>> 核心代码 <<<<*/
	free(sectTab);
	return imageBuff;
}

//收缩PE
LPVOID ShrinkPE(
	IN LPVOID pe
) {
	PIMAGE_DOS_HEADER	dosHeader = nullptr;
	PIMAGE_FILE_HEADER	fileHeader = nullptr;
	PIMAGE_OPTIONAL_HEADER32 opHeader = nullptr;
	PIMAGE_SECTION_HEADER* sectTab = nullptr;
	AnlyzePE(pe, dosHeader, fileHeader, opHeader, sectTab);

	/*>>>> 核心代码 <<<<*/
	//获取要申请的空间大小（文件PE的大小）
	size_t size = opHeader->SizeOfHeaders;
	for (DWORD i = 0; i < fileHeader->NumberOfSections; i++)
	{
		size += (*sectTab + i)->SizeOfRawData;
	}
	//申请文件PE内存空间
	LPVOID fileBuff = malloc(size);
	if (fileBuff)
	{
		memset(fileBuff, 0, size);
		//将内存PE的所有头/表复制到文件PE内存空间
		memcpy_s(fileBuff, opHeader->SizeOfHeaders, pe, opHeader->SizeOfHeaders);
		//依次复制每一个节区到文件PE内存空间
		for (DWORD i = 0; i < fileHeader->NumberOfSections; i++)
		{
			PIMAGE_SECTION_HEADER section = (*sectTab + i);
			memcpy_s(
				(PCHAR)fileBuff + section->PointerToRawData,
				section->SizeOfRawData,
				(PCHAR)pe + section->VirtualAddress,
				section->Misc.VirtualSize
			);
		}
	}
	/*>>>> 核心代码 <<<<*/
	free(sectTab);
	return fileBuff;
}

//解析PE
void AnlyzePE(
	IN  LPVOID pe,
	OUT PIMAGE_DOS_HEADER& pDosHeader,
	OUT PIMAGE_FILE_HEADER& pFileHeader,
	OUT PIMAGE_OPTIONAL_HEADER32& pOptionalHeader,
	OUT PIMAGE_SECTION_HEADER*& pSectionArr
) {

	//解析DOS
	pDosHeader = (PIMAGE_DOS_HEADER)pe;
	//解析标准PE头（+4 跳过PE标识）
	pFileHeader = (PIMAGE_FILE_HEADER)((PCHAR)pe + pDosHeader->e_lfanew + 4);
	//解析可选PE头（+20 跳过标准PE头）
	pOptionalHeader = (PIMAGE_OPTIONAL_HEADER32)((PCHAR)pe + pDosHeader->e_lfanew + 4 + 20);
	//为节表数组申请内存空间
	pSectionArr = (PIMAGE_SECTION_HEADER*)malloc(pFileHeader->NumberOfSections * sizeof(IMAGE_SECTION_HEADER));
	if (pSectionArr != nullptr)
	{
		//依次解析每一个节表
		for (int i = 0; i < pFileHeader->NumberOfSections; i++)
		{
			*(pSectionArr + i) = (PIMAGE_SECTION_HEADER)((PCHAR)pe + pDosHeader->e_lfanew + 4 + 20 + pFileHeader->SizeOfOptionalHeader + (i * sizeof(IMAGE_SECTION_HEADER)));
		}
	}
}

//内存地址转文件偏移
int RvaToFoa(
	IN LPVOID pe,
	IN UINT_PTR rva
) {
	PIMAGE_DOS_HEADER dos = nullptr;
	PIMAGE_FILE_HEADER file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);
	DWORD foa = -1;

	/*>>>>核心代码<<<<*/
	for (WORD i = 0; i < file->NumberOfSections; i++)
	{
		//获取节区在内存中的开始地址和结束地址
		UINT_PTR begin = (*section + i)->VirtualAddress;
		UINT_PTR end = (*section + i)->VirtualAddress + (*section + i)->SizeOfRawData;
		//如果内存地址在节区中
		if (begin <= rva && rva <= end)
		{
			//转为文件偏移
			foa = rva - begin + (*section + i)->PointerToRawData;
			break;
		}
	}
	/*>>>>核心代码<<<<*/
	free(section);
	return foa;
}

//文件偏移转内存地址
int FoaToRva(
	IN LPVOID pe,
	IN DWORD foa
) {
	PIMAGE_DOS_HEADER dos = nullptr;
	PIMAGE_FILE_HEADER file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);
	DWORD rva = -1;

	for (WORD i = 0; i < file->NumberOfSections; i++)
	{
		DWORD begin = (*section + i)->PointerToRawData;
		DWORD end = (*section + i)->PointerToRawData + (*section + i)->SizeOfRawData;
		if (foa >= begin && foa <= end)
		{
			rva = foa - begin + (*section + i)->VirtualAddress;
			break;
		}
	}
	return rva;
}

//打印导出表
void PrintExport(
	IN LPVOID pe
) {
	PIMAGE_DOS_HEADER dos = nullptr;
	PIMAGE_FILE_HEADER file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);

	DWORD offset = RvaToFoa(pe, optional->DataDirectory[0].VirtualAddress);
	PIMAGE_EXPORT_DIRECTORY exportTable = (PIMAGE_EXPORT_DIRECTORY)((PCHAR)pe + offset);
	printf(">>>> 导出表 <<<<\n");
	printf("Characteristics          =%x\n", exportTable->Characteristics);
	printf("TimeDateStamp            =%x\n", exportTable->TimeDateStamp);
	printf("MajorVersion             =%x\n", exportTable->MajorVersion);
	printf("MinorVersion             =%x\n", exportTable->MinorVersion);
	printf("Name                     =%x\n", exportTable->Name);
	printf("Base                     =%x\n", exportTable->Base);
	printf("NumberOfFunctions        =%x\n", exportTable->NumberOfFunctions);
	printf("NumberOfNames            =%x\n", exportTable->NumberOfNames);
	printf("AddressOfFunctions       =%x\n", exportTable->AddressOfFunctions);
	printf("AddressOfNames           =%x\n", exportTable->AddressOfNames);
	printf("AddressOfNameOrdinals    =%x\n", exportTable->AddressOfNameOrdinals);

	DWORD(*function)[1];
	function = (DWORD(*)[1])((PCHAR)pe + RvaToFoa(pe, exportTable->AddressOfFunctions));
	printf(">>>> Functions <<<<\n");
	for (DWORD i = 0; i < exportTable->NumberOfFunctions; i++)
	{
		printf("%d = %x\n", i, *(*(function)+i));
	}

	WORD(*ordinal)[1];
	ordinal = (WORD(*)[1])((PCHAR)pe + RvaToFoa(pe, exportTable->AddressOfNameOrdinals));
	printf(">>>> Ordinals <<<<\n");
	for (DWORD i = 0; i < exportTable->NumberOfFunctions; i++)
	{
		printf("%d = %x\n", i, *(*(ordinal)+i));
	}

	DWORD(*name)[1];
	name = (DWORD(*)[1])((PCHAR)pe + RvaToFoa(pe, exportTable->AddressOfNames));
	printf(">>>> Names <<<<\n");
	for (DWORD i = 0; i < exportTable->NumberOfFunctions; i++)
	{
		printf("%d = %s\n", i, (PCHAR)pe + RvaToFoa(pe, *(*(name)+i)));
	}
	free(section);
	return;
}

//字符串比较
bool M_strcmp(
	IN char* s1,
	IN char* s2
) {
	int length = strlen(s1);
	if (length != strlen(s2))
	{
		return false;
	}
	else
	{
		for (int i = 0; i < length; i++)
		{
			if (s1[i] != s2[i])
			{
				return false;
			}
		}
	}
	return true;
}

//根据名称获取函数地址
LPVOID GetFunctionAddrByName(
	IN LPVOID pe,
	IN LPCSTR funcName
) {
	PIMAGE_DOS_HEADER dos = nullptr;
	PIMAGE_FILE_HEADER file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);

	//计算导出表在文件PE中的偏移
	DWORD offset = RvaToFoa(pe, optional->DataDirectory[0].VirtualAddress);
	//获取导出表
	PIMAGE_EXPORT_DIRECTORY exportTable = (PIMAGE_EXPORT_DIRECTORY)((PCHAR)pe + offset);

	//四字节数组指针
	DWORD(*function)[1];
	//指针指向导出表的子表"函数地址表"
	function = (DWORD(*)[1])((PCHAR)pe + RvaToFoa(pe, exportTable->AddressOfFunctions));
	//二字节数组指针
	WORD(*ordinal)[1];
	//指针指向导出表的子表"序号表"
	ordinal = (WORD(*)[1])((PCHAR)pe + RvaToFoa(pe, exportTable->AddressOfNameOrdinals));
	//四字节数组指针
	DWORD(*name)[1];
	//指针指向导出表的子表"函数名称表"
	name = (DWORD(*)[1])((PCHAR)pe + RvaToFoa(pe, exportTable->AddressOfNames));
	/*>>>> 关键代码 <<<<*/
	//根据函数地址数量进行循环
	for (DWORD i = 0; i < exportTable->NumberOfFunctions; i++)
	{
		//根据当前索引获取"函数名称表"中对应的名称
		LPCSTR tempName = (PCHAR)pe + RvaToFoa(pe, *(*(name)+i));
		//如果名称与寻找的名称相同
		if (M_strcmp((char*)tempName, (char*)funcName))
		{
			//根据当前索引获取"序号表"中对应的数值
			DWORD funcIndex = *(*(ordinal)+i);
			free(section);
			//返回函数地址
			return (LPVOID) * (*(function)+funcIndex);
		}
	}
	/*>>>> 关键代码 <<<<*/
	free(section);
	return nullptr;
}

//根据导出序号获取函数地址
LPVOID GetFunctionAddrByOrdinal(
	IN LPVOID pe,
	IN DWORD exportNumber
) {
	PIMAGE_DOS_HEADER dos = nullptr;
	PIMAGE_FILE_HEADER file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);

	//获取导出表在文件PE中的偏移
	DWORD offset = RvaToFoa(pe, optional->DataDirectory[0].VirtualAddress);
	//获取导出表
	PIMAGE_EXPORT_DIRECTORY exportTable = (PIMAGE_EXPORT_DIRECTORY)((PCHAR)pe + offset);

	//四字节数组指针指向"函数地址表"
	DWORD(*function)[1];
	function = (DWORD(*)[1])((PCHAR)pe + RvaToFoa(pe, exportTable->AddressOfFunctions));

	free(section);
	//根据(寻找的序号 - 序号表的基序号)在"函数地址表"中寻找对应的地址返回
	return (LPVOID) * (*(function)+(exportNumber - exportTable->Base));
}

bool CreateSection(
	IN LPVOID& pe,
	IN size_t size
) {
	PIMAGE_DOS_HEADER dos = nullptr;
	PIMAGE_FILE_HEADER file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);

	//拉升除DOS头以外的头/表
	size_t ntHeaderAndSection = 24 + file->SizeOfOptionalHeader + (40 * file->NumberOfSections);
	size_t allHeaderOrSection = 64 + ntHeaderAndSection;
	memcpy_s(((PCHAR)pe) + 64, _msize(pe), ((PCHAR)file) - 4, ntHeaderAndSection);
	//修改NT头偏移
	dos->e_lfanew = 64;

	free(section);
	section = NULL;
	AnlyzePE(pe, dos, file, optional, section);
	//将残留数据清零
	memset((PCHAR)pe + allHeaderOrSection, 0, optional->SizeOfHeaders - allHeaderOrSection);

	//修改节表数量
	file->NumberOfSections++;
	//修改内存大小
	optional->SizeOfImage += size;

	/*>>>> 关键代码 <<<<*/
	if (optional->SizeOfHeaders - allHeaderOrSection >= (40 * 2))
	{
		//在最后一个节表的后面写入一个新的节表（新节表复制于.text）
		memcpy_s(((PCHAR)pe) + allHeaderOrSection, 40, section[1], 40);
		//获取最后一个节表（-2是因为在前面就已经修改了节表数量，原本是-1）
		PIMAGE_SECTION_HEADER lastSection = (*section + file->NumberOfSections - 2);
		//根据最后一个节表加上节表大小，获取新节表
		PIMAGE_SECTION_HEADER newSectionTab = (PIMAGE_SECTION_HEADER)(((UINT_PTR)lastSection) + 40);
		//新节表的名称
		BYTE newName[] = { '.', 'n', 'e', 'w', '\0' };
		//修改新节表的名称
		memcpy_s(newSectionTab->Name, 8, newName, sizeof(newName));
		//修改新节表在内存中的地址（最后一个节表在内存中的地址 + 最后一个节表的(SizeofRawData 或 VirtualSize，两者谁大取谁)）
		newSectionTab->VirtualAddress = Align(lastSection->VirtualAddress + (lastSection->Misc.VirtualSize > lastSection->SizeOfRawData ? lastSection->Misc.VirtualSize : lastSection->SizeOfRawData), optional->SectionAlignment);
		//修改新节表在文件中的偏移（最后一个节表在文件中的偏移 + 最后一个节表在文件中对其后的大小）
		newSectionTab->PointerToRawData = Align(lastSection->PointerToRawData + lastSection->SizeOfRawData, optional->FileAlignment);
		//将新节表在内存中的大小置零（因为是新节表。没数据）
		newSectionTab->Misc.VirtualSize = 0;
		//修改新节表在文件中的对其后的大小
		newSectionTab->SizeOfRawData = Align(size, optional->FileAlignment);
		//修改新节表的属性（所有节表拥有的属性）
		for (DWORD i = 0; i < file->NumberOfSections; i++)
		{
			newSectionTab->Characteristics |= (*section + i)->Characteristics;
		}

		LPVOID newPE = malloc(_msize(pe) + size);
		if (newPE)
		{
			memset(newPE, 0, _msize(newPE));
			memcpy_s(newPE, _msize(newPE), pe, _msize(pe));
			free(pe);
			pe = NULL;
			pe = newPE;
			return true;
		}
	}
	/*>>>> 关键代码 <<<<*/
	return false;
}


bool WriteMyFilePeData(
	IN LPVOID pe,
	IN LPCSTR filePath
) {
	FILE* newProgram = nullptr;
	bool result = true;
	size_t size = NULL;

	//打开文件
	fopen_s(&newProgram, filePath, "wb");
	if (newProgram == nullptr)
	{
		printf("failed to create by program!\n");
		result = false;
		goto END;
	}

	size = _msize(pe);
	fwrite(pe, 1, size, newProgram);

END:
	if (newProgram)
		fclose(newProgram);

	return result;
}

//节区扩容
LPVOID SectionExpand(
	IN LPVOID pe,
	IN size_t size
) {
	PIMAGE_DOS_HEADER dos = nullptr;
	PIMAGE_FILE_HEADER file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;

	//计算扩容后的大小
	size_t expanedSize = _msize(pe) + size;
	LPVOID expanedBuffer = malloc(expanedSize);

	if (expanedBuffer != nullptr)
	{
		//将原来PE数据复制到将扩充后的PE内存中（此时已经在空间上）
		memset(expanedBuffer, 0, expanedSize);
		memcpy_s(expanedBuffer, expanedSize, pe, _msize(pe));

		AnlyzePE((PCHAR)expanedBuffer, dos, file, optional, section);
		//扩容字节内存对其
		size_t alignmentSize = Align(size, optional->SectionAlignment);
		//修改内存镜像大小
		optional->SizeOfImage += alignmentSize;
		//扩容字节文件对其
		alignmentSize = Align(size, optional->FileAlignment);
		//修改数据在文件对其后的大小
		section[file->NumberOfSections - 1]->SizeOfRawData += alignmentSize;
	}
	else
	{
		return nullptr;
	}

	free(section);
	free(pe);
	pe = NULL;
	return expanedBuffer;
}

//移动重定位表到节区中
bool RelocMove(
	IN LPVOID pe,
	IN int index
) {
	PIMAGE_DOS_HEADER dos = nullptr;
	PIMAGE_FILE_HEADER file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);

	if (index == -1)
	{
		index = file->NumberOfSections - 1;
	}

	//获取重定位表
	DWORD offset = RvaToFoa(pe, optional->DataDirectory[5].VirtualAddress);
	PIMAGE_BASE_RELOCATION relocationTable = (PIMAGE_BASE_RELOCATION)((PCHAR)pe + offset);

	//获取重定位表大小
	size_t relocationSize = NULL;
	while (relocationTable->VirtualAddress != NULL || relocationTable->SizeOfBlock != NULL)
	{
		relocationSize += relocationTable->SizeOfBlock;
		relocationTable = (PIMAGE_BASE_RELOCATION)((PCHAR)relocationTable + relocationTable->SizeOfBlock);
	}
	relocationTable = (PIMAGE_BASE_RELOCATION)((PCHAR)pe + offset);

	//如果节区剩余空白字节大于重定位表大小
	if (section[index]->SizeOfRawData - section[index]->Misc.VirtualSize >= relocationSize)
	{
		//获取要写入节区空白字节的开始地址在文件PE中的偏移
		DWORD writeMemory = RvaToFoa(pe, (UINT_PTR)((PCHAR)section[index]->VirtualAddress + section[index]->Misc.VirtualSize));
		//写入重定位表
		memcpy_s((PCHAR)pe + writeMemory, relocationSize, (PCHAR)relocationTable, relocationSize);
		//修改节区真实数据大小
		section[index]->Misc.VirtualSize += relocationSize;
		//修改重定位表内存偏移
		optional->DataDirectory[5].VirtualAddress = (writeMemory - section[index]->PointerToRawData) + section[index]->VirtualAddress;
		return true;
	}
	else
	{
		return false;
	}
}


bool SetImageBase(
	IN LPVOID pe,
	IN DWORD imageBase
) {
	PIMAGE_DOS_HEADER        dos = nullptr;
	PIMAGE_FILE_HEADER       file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);

	//获取新基址和原本基址的差值
	DWORD difference = imageBase - optional->ImageBase;

	//定位第一张重定位表
	DWORD relocOffset = RvaToFoa(pe, optional->DataDirectory[5].VirtualAddress);
	PIMAGE_BASE_RELOCATION relocTab = (PIMAGE_BASE_RELOCATION)((PCHAR)pe + relocOffset);

	//循环所有重定位表
	while (relocTab->VirtualAddress != NULL && relocTab->SizeOfBlock != NULL)
	{
		//循环所有项
		for (DWORD i = 0; i < (relocTab->SizeOfBlock - 8) / 2; i++)
		{
			//高4位
			WORD hige = *((PWORD)((PCHAR)relocTab + 8) + i) >> 12;
			//低12位
			WORD low = *((PWORD)((PCHAR)relocTab + 8) + i) & 0x0FFF;
			//判断是否需要修复
			if (hige == 3)
			{
				//获取需要修复的地址在文件PE中的偏移
				DWORD offset = RvaToFoa(pe, relocTab->VirtualAddress + low);
				printf("%x = %x = %x = %x\n", offset, relocTab->VirtualAddress + low, *((PDWORD)((PCHAR)pe + offset)), *((PDWORD)((PCHAR)pe + offset)) + difference);
				//地址 + 1000
				*((PDWORD)((PCHAR)pe + offset)) += difference;
			}
		}
		//定位下一个重定位表
		relocTab = (PIMAGE_BASE_RELOCATION)((PCHAR)relocTab + relocTab->SizeOfBlock);
	}
	//修改内存基址
	optional->ImageBase = imageBase;
	return true;
}

//移动导出表
bool ExportTableMove(
	IN LPVOID pe,
	IN int index /*= -1 */
) {
	//解析PE结构
	PIMAGE_DOS_HEADER        dos = nullptr;
	PIMAGE_FILE_HEADER       file = nullptr;
	PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
	PIMAGE_SECTION_HEADER* section = nullptr;
	AnlyzePE(pe, dos, file, optional, section);

	if (index == -1)
	{
		index = file->NumberOfSections - 1;
	}

	//获取导出表
	DWORD offset = RvaToFoa(pe, optional->DataDirectory[0].VirtualAddress);
	PIMAGE_EXPORT_DIRECTORY exportTab = (PIMAGE_EXPORT_DIRECTORY)((PCHAR)pe + offset);

	size_t exportTabSize = 0x28 + (exportTab->NumberOfFunctions * 4) + (exportTab->NumberOfNames * 2);
	for (DWORD i = 0, n = 0; n < exportTab->NumberOfNames; i++)
	{
		PDWORD n1 = (PDWORD)((PCHAR)pe + RvaToFoa(pe, exportTab->AddressOfNames));
		PCHAR name = (PCHAR)pe + RvaToFoa(pe, *(n1 + i));
		if (name)
		{
			exportTabSize += strlen(name) + 1;
			n++;
		}
	}

	//拷贝导出表到节区中
	if (section[index]->SizeOfRawData - section[index]->Misc.VirtualSize >= exportTabSize)
	{
		//复制AddressOfFunction表
		memcpy_s(
			(PCHAR)pe + section[index]->PointerToRawData + section[index]->Misc.VirtualSize,
			exportTab->NumberOfFunctions * 4,
			(PCHAR)pe + RvaToFoa(pe, exportTab->AddressOfFunctions),
			exportTab->NumberOfFunctions * 4
		);
		exportTab->AddressOfFunctions = FoaToRva(pe, section[index]->PointerToRawData + section[index]->Misc.VirtualSize);
		section[index]->Misc.VirtualSize += exportTab->NumberOfFunctions * 4;

		//复制AddressOfOrdinal表
		memcpy_s(
			(PCHAR)pe + section[index]->PointerToRawData + section[index]->Misc.VirtualSize,
			exportTab->NumberOfNames * 2,
			(PCHAR)pe + RvaToFoa(pe, exportTab->AddressOfNameOrdinals),
			exportTab->NumberOfNames * 2
		);
		exportTab->AddressOfNameOrdinals = FoaToRva(pe, section[index]->PointerToRawData + section[index]->Misc.VirtualSize);
		section[index]->Misc.VirtualSize += exportTab->NumberOfNames * 2;

		//复制AddressOfName表
		memcpy_s(
			(PCHAR)pe + section[index]->PointerToRawData + section[index]->Misc.VirtualSize,
			exportTab->NumberOfNames * 4,
			(PCHAR)pe + RvaToFoa(pe, exportTab->AddressOfNames),
			exportTab->NumberOfNames * 4
		);
		exportTab->AddressOfNames = FoaToRva(pe, section[index]->PointerToRawData + section[index]->Misc.VirtualSize);
		DWORD addrOfName = section[index]->PointerToRawData + section[index]->Misc.VirtualSize;
		section[index]->Misc.VirtualSize += exportTab->NumberOfNames * 4;

		//拷贝函数名
		for (DWORD i = 0, n = 0; n < exportTab->NumberOfNames; i++)
		{
			PDWORD n1 = (PDWORD)((PCHAR)pe + RvaToFoa(pe, exportTab->AddressOfNames));
			PCHAR name = (PCHAR)pe + RvaToFoa(pe, *(n1 + i));
			if (name)
			{
				memcpy_s(
					(PCHAR)pe + section[index]->PointerToRawData + section[index]->Misc.VirtualSize,
					strlen(name) + 1,
					name,
					strlen(name) + 1
				);
				*((PDWORD)((PCHAR)pe + addrOfName) + n) = FoaToRva(pe, section[index]->PointerToRawData + section[index]->Misc.VirtualSize);
				section[index]->Misc.VirtualSize += strlen(name) + 1;
				n++;
			}
		}

		//拷贝导出表
		memcpy_s(
			(PCHAR)pe + section[index]->PointerToRawData + section[index]->Misc.VirtualSize,
			0x28,
			(PCHAR)pe + offset,
			0x28
		);
		optional->DataDirectory[0].VirtualAddress = FoaToRva(pe, section[index]->PointerToRawData + section[index]->Misc.VirtualSize);
		section[index]->Misc.VirtualSize += 0x28;

	}

	//修改导出表在内存中的偏移
	free(section);
	return true;
}

main.cpp

int main()
{

	LPVOID pe = ReadPE(R"(D:\source\repos\dllmain\Debug\MyDll.dll)");
	if (pe && CreateSection(pe, 0x1000))
	{
		PIMAGE_DOS_HEADER dos = nullptr;
		PIMAGE_FILE_HEADER file = nullptr;
		PIMAGE_OPTIONAL_HEADER32 optional = nullptr;
		PIMAGE_SECTION_HEADER* section = nullptr;
		AnlyzePE(pe, dos, file, optional, section);

		//移动重定位表
		RelocMove(pe);
		//修改内存镜像基址，并修复根据重定位表修复全局变量地址
		SetImageBase(pe, optional->ImageBase + 0x10000);
		//移动导出表
		ExportTableMove(pe, file->NumberOfSections - 1);
		WriteMyFilePeData(pe, R"(C:\Users\lenovo\Desktop\dll.dll)");
		free(pe);
	}

	return 0;
}

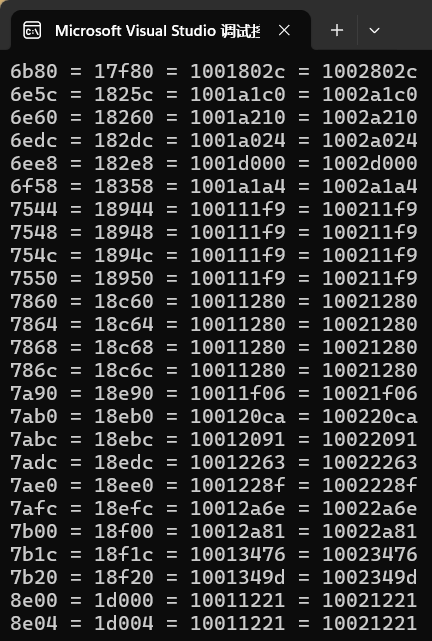

运行结果
